RION Air Particle Counters

With the trend towards ever more compact, highly integrated, and high-performance products in the fields of electronics and mechatronics, the problem of contamination by microparticles in the air or in liquids is becoming a major consideration.

For example, during the manufacturing process of a 1-megabyte DRAM LSI chip, 0.1-micron size particles can critically impair the product, and now, with the focus shifting to 64 and 256-megabyte chips, even particles as small as 0.05 micron can cause unacceptable contamination.

Since particles floating in the air often carry bacteria, particle control is being increasingly necessary for pharmaceutical and foodstuff production as well.

In all of these areas of industry, clean rooms with carefully controlled particle levels are very important. Purity control is seen as vital for maintaining product quality and increasing yield in more and more fields of industry, thus contributing to the advancement of leading-edge technology.



Portable Airborne Particle Counter

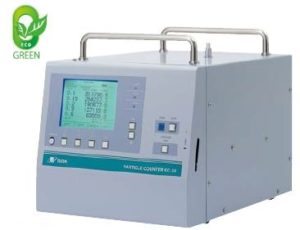

RION KC-24 Airborne Particle Counter

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 5 channels: ≥0.1µm, ≥0.15µm, ≥0.2µm, ≥0.3µm, ≥0.5µm
  • Flow Rate: 1.0 cfm (28.3 L/m)
  • Function: Touch panel buttons, 5.7″ color LCD panel
  • Communication – CF Card slot available, Serial data cable connection to RP Monitor EVO software
  • Power: 100V to 240V AC, 50/60 Hz
  • Diode-pumped solid-state laser allows compact and lightweight construction
  • Quick and simple air purity evaluation according to ISO 14644-1
  • Printer can be installed to the main unit (factory option)
  • Seamless integration in RION multi-point monitoring system or tube multi-point system

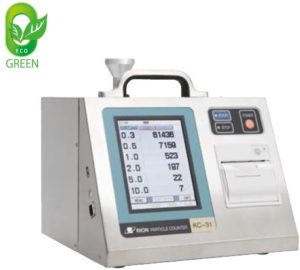

RION KC-31 Airborne Particle Counter

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 6 channels: ≥0.3, ≥0.5, ≥1.0, ≥2.0, ≥5.0, ≥10.0,
  • Flow Rate: 1.0 cfm (28.3 L/m)
  • Function: Touch panel buttons, 5.7″ color LCD panel
  • Security: 3-stage permission level management, Admin, User, Guest)
  • Validation: IQ, OQ papers available.
  • Outputs: USBx2 – “A” for data transfer, and “B” for PC connection,RJ-45 (for multi-point monitoring system), alarm relays.
  • Printer: Thermal, built-in
  • Power: 100V to 240V AC, 50/60 Hz
  • Battery: Removable Lithium-ion Battery, 1 supplied, up to 2 can
    be installed
  • Supplied Accessories: Sampling tube (1m), constant speed suction
    probe, zero count filter, AC Adapter, Power Cord, battery x 1, quick instruction manual, CD-ROM (full instr. man, audit trail display Log Viewer).
  • Options: Sampling tube, Spare battery, charger, USB memory media, carrying case, USB cable, thermo-sensitive paper, RION Particle Monitor software (consult MGN for the proper version, multi-point, or local control)

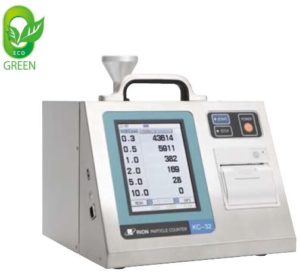

RION KC-32 Airborne Particle Counter
  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 6 channels: ≥0.3, ≥0.5, ≥1.0, ≥2.0, ≥5.0, ≥10.0
  • Flow Rate: 50 L/m
  • Function: Touch panel buttons, 5.7″ color LCD panel
  • Security: 3-stage permission level management, Admin, User, Guest)
  • Validation: IQ, OQ papers available.
  • Outputs: USBx2 – “A” for data transfer, and “B” for PC connection, RJ-45 (for multi-point monitoring system), alarm
    relays.
  • Printer: Thermal, built-in
  • Power: 100V to 240V AC, 50/60 Hz
  • Battery: Removable Lithium-ion Battery, 1 supplied, up to 2 can be installed.
  • Supplied Accessories: Sampling tube (1m), constant speed suction
    probe, zero count filter, AC Adapter, Power Cord, battery x 1, quick instruction manual, CD-ROM (full
    instr. man, audit trail display Log Viewer).
  • Options: Sampling tube, Spare battery, charger, USB memory media, carrying case, USB cable, thermo-sensitive paper, RION Particle Monitor software (consult MGN for the proper version, multi-point, or local control)

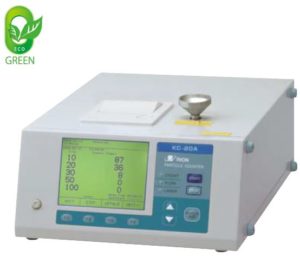

RION KC-20A Airborne Particle Counter
  • Particle Sizes: 5 channels (10, 20, 30, 50, 100µm)
  • Flow Rate: 30 Liter/min
  • Common Applications: Industrial / Automotive Paint Booth Monitoring

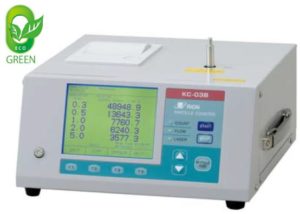

RION KC-03B Airborne Particle Counter
  • Particle Sizes: 5 channels (0.3, 0.5, 1, 2, 5µm)
  • Flow Rate: 3 liter/min



Hand-Held Airborne Particle Counter

RION Particle Counter KC-52

  • ISO 21501-4 (JIS B 9921) Compliant
  • Interface: Equipped with USB terminal
  • Memory: SD Memory Card Slot (std)
  • Display: 3.5-inch color LCD with touch panel
  • Languages: Selectable English and Japanese display
  • Minimum size: 0.3 micron
  • Flow Rate: 2.83L/min (0.1CFM)
  • Integration: Multi-Point Software Compatible.



RION Particle Counter KC-51

  • ISO 21501-4 (JIS B 9921) Compliant
  • Interface: Equipped with USB Terminal
  • Memory: 100 pt rotating buffer
  • 3 channels: 0.3, 0.5, & 5.0um (std) IAQ model also available
  • Flow Rate: 2.83L/min (0.1 CFM)
  • Display: 3.2-inch monochrome LCD panel.



Remote Airborne Particle Counter

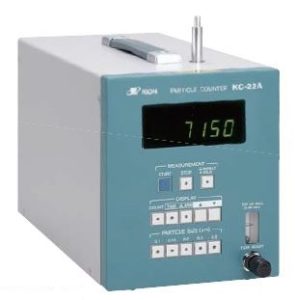

Remote Particle Counter KC-22A

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 5 channels: ≥0.1µm, ≥0.15µm, ≥0.2µm, ≥0.3µm, ≥0.5µm
  • Flow Rate: 1.0 cfm (2.83 L/m)
  • Communication – Equipped with RS-232C interface as standard, enabling automatic computer measurements using RP Monitor EVO software
  • Power: 100V AC, 50/60 Hz
  • Uses diode-pumped solid-state laser for optimum reliability.
  • Long-life laser diode
  • Compact, a lightweight, low-cost model with high reliability

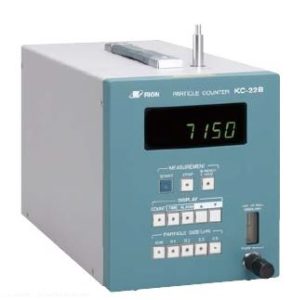

Remote Particle Counter KC-22B

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 5 channels: ≥0.08µm, ≥0.1µm, ≥0.2µm, ≥0.3µm, ≥0.5µm
  • Flow Rate: 0.3 L/m
  • Communication – Equipped with RS-232C interface as standard, enabling automatic computer measurements using RP Monitor EVO software
  • Power: 100V to 240V AC, 50/60 Hz
  • Uses diode-pumped solid-state laser for optimum reliability.
  • High concentration for 0.08μm measurement
  • Precise measurement with a small amount of sample air
  • Compact and lightweight. High output with long life.

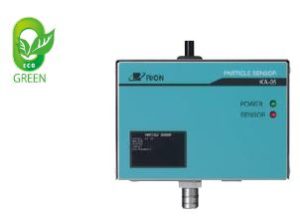

Remote Particle Counter KA-05

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 2 channels: ≥0.5µm, ≥5.0µm
  • High flow rate: 28.3 L/min (with separate suction pump)
  • Stainless steel chassis for improved resistance against chemicals
  • Support for the 2-channel analog output (4-20 mA) (Factory option)
  • Power: 9 to 28 V DC (supplied by optional power supply unit)
    15 to 28 V DC (when factory option for 4-20 mA output is installed)



Remote Particle Counter KA-02

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 2 channels: ≥0.3µm, ≥0.5µm
  • High flow rate: 2.83 L/min (with separate suction pump)
  • Compact dimensions and lightweight allow dust particle monitoring within process equipment
  • Stainless steel chassis for improved resistance against chemicals
  • Power: 9 to 29V DC (supplied by external unit, option)

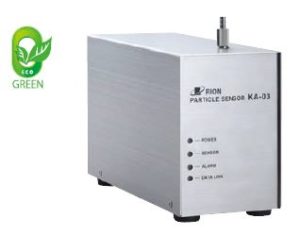

Remote Particle Counter KA-03

  • ISO 21501-4 (JIS B 9921) Compliant
  • Particle Sizes: 5 channels: ≥0.3µm, ≥0.5µm, ≥1.0µm, ≥2.0µm, ≥5.0µm
  • High flow rate: 2.83 L/min (with separate suction pump)
  • Compact integrated design comprising sensor and pump
  • Stainless steel chassis for improved resistance against chemicals
  • Power: AC adapter (100V to 240V AC, 50/60Hz)
